How to Cut a Ceramic Tile

Cutting ceramic tiles may sound scary, but it is actually surprisingly easy. The tool you use will depend on what sort of cut you are doing and how many tiles you plan on cutting. If you just have to cut a few tiles, a glass cutter will suffice. If you need to cut more tiles, however, a tiling tool or a wet saw might be more convenient. Knowing how to cut tiles yourself can save you a lot of money. It also ensures that your tiles come out precisely the way you want them to.

EditSteps

EditUsing a Glass Cutter for Straight Cuts

  1. Use a pencil and a square to measure and mark your tiles. A square is a special ruler shaped like a right angle. Align the horizontal edge of the square with the bottom edge of the tile. Use the vertical edge of the square and a pencil to draw your guideline.
    Cut a Ceramic Tile Step 1.jpg
    • This method is better suited to small jobs where you just need to cut a few tiles. It is not suitable for cutting corners or curves.
  2. Set the tile down onto a sturdy surface and reposition the square. A workbench or plywood would work the best for this. Move the square off to the side so that it is right next to your marked line. This will allow you to cut right along the line without cutting into the square.[1]
    Cut a Ceramic Tile Step 2.jpg
  3. Score the tile with the glass cutter. Press down on the tile with the glass cutter, then drag it across the line that you drew, using the square as a guide. You may have to score the tile a few times in order to make a shallow cut.[2]
    Cut a Ceramic Tile Step 3.jpg
    • If you can't find a glass cutter, try a carbide tipped pencil instead.[3]
  4. Snap the tile over a wire hanger. Place the tile on top of a wire hanger. Make sure that the hanger is aligned with the line that you scored. Next, press down on the un-scored edges of the tile until it snaps.[4]
    Cut a Ceramic Tile Step 4.jpg
    • if you scored form left-to-right, press down on the top and bottom edges, and vice versa.
    • If you scored the tile close to the edge, snap off the thinner side with tile nippers.[5]
  5. Smooth the edges of the tile with a brick, if needed. You can do this by rubbing the cut edge of the tile back and forth across a brick or some concrete. This will buff away any roughness, much like sandpaper would on a block of wood.[6]
    Cut a Ceramic Tile Step 5.jpg

EditUsing a Tiling Tool for Straight Cuts

  1. Measure and mark your tile with a square and a pencil. A square is a ruler shaped like a right angle. Align one edge of the square with one edge of your tile. Use a pencil and the other edge to draw your guideline.
    Cut a Ceramic Tile Step 6.jpg
    • This method is great if you have a lot of tiles to cut. It's also suitable if you need to cut a lot of surface area, such as corner-to-corner (as opposed edge-to-edge).
  2. Set the tile into a tile cutter. Set the square aside and set the tile into the tile cutter. Push the tile right up against the fence. Make sure that the line that you drew is right under the scoring wheel.[7]
    Cut a Ceramic Tile Step 7.jpg
  3. Use the tile cutter to score the tile. Gently press down on the handle part of the cutter, then slide the wheel part across the tile. You may hear a scratching noise, which is a good sign: the tile is being cut.[8]
    Cut a Ceramic Tile Step 8.jpg

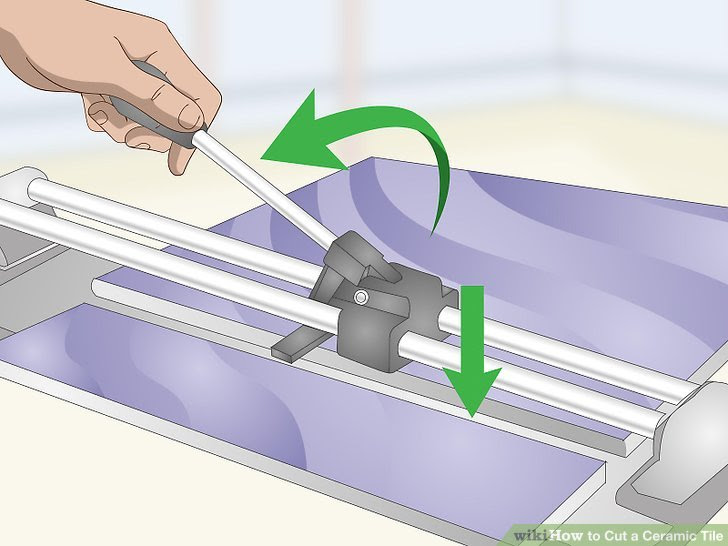

  4. Use the tile cutter to snap the tile in half. Move the handle away from the edge of the tile so that the breaking feet land on top of the tile. Gently press down on the handle again to lower the breaking feet and snap the tile.[9]
    Cut a Ceramic Tile Step 9.jpg
  5. Use a jig and a strip of wood if you need to snap off a thin strip. Set up a jig that’s composed of 2 1-by-4s. Separate the 1-by-4s with a strip of wood that's the same thickness as your tile. Make sure that the scored line is level with the edge of your jig set-up. Press down on the tile to create a clean break.[10]
    Cut a Ceramic Tile Step 10.jpg
  6. Smooth the cut edges with a brick, if needed. Rub the cut edge of the tile back and forth across a brick until the roughness is gone. If you don’t have a brick handy, concrete will also work.
    Cut a Ceramic Tile Step 11.jpg

EditUsing a Wet Saw for Straight and Corner Cuts

  1. Measure and mark your tiles where you want to cut them. Use a measuring square to determine how much you need to cut off. Make your cutting marks with a pencil. You can make the marks horizontal, vertical, or even diagonal.
    Cut a Ceramic Tile Step 12.jpg
    • This method is suitable for big jobs involving lots of tiles.
    • You can also use wet saws to cut tile trimmings with a bullnose or quarter-round shape.[11]
  2. Set up the wet saw according to the saw's instructions. Each wet saw will be a little different, so be sure to follow the instructions closely. In most cases, you will need to fill the tub with water and turn the saw on.[12]
    Cut a Ceramic Tile Step 13.jpg
  3. Cut the tile according to the saw’s instructions. Each saw will be a little different, so read the instructions carefully. For the cleanest cut, avoid pushing or forcing the tile into the saw. Instead, gently guide the tile towards the saw, and let the saw do the cutting for you.[13]
    Cut a Ceramic Tile Step 14.jpg
    • Make sure that the water is covering the blade when cutting.
  4. Smooth down any roughness with a brick. Even if you took extra steps to ensure the cleanest of cuts, there may be some roughness on the cut edges. If this happened to you, simply rub the cut edge of the tile across a brick or a piece of concrete a few times.
    Cut a Ceramic Tile Step 15.jpg

EditUsing Tile Nippers for Curves

  1. Draw a curved line with a pencil where you want to cut the tile. Don’t be afraid to use French curves, cans, lids, and other round objects as a template. If the area you will be cutting is far from the edge of the tile, consider cutting the tile down using one of the above methods first.
    Cut a Ceramic Tile Step 16.jpg
    • This method will require you to cut the tile away bit by bit until you reach the line that you drew.
  2. Pinch the tile between the tile nippers. Place them close to the edge of the tile—even if your curved line is further in. Break off small pieces of tile at a time. If you break off too much at one time, you will risk breaking the tile.
    Cut a Ceramic Tile Step 17.jpg
  3. Break a piece of the tile off with the tile nippers. Squeeze down on the handle of the tile nippers to get a good grip on the tile. Snap the piece off of the tile.
    Cut a Ceramic Tile Step 18.jpg
  4. Continue breaking off pieces of tile until you reach the curved line. Work your way back and forth across the tile in narrow rows. Break off smaller pieces the closer you get to the line for more precision.[14]
    Cut a Ceramic Tile Step 19.jpg
  5. Smooth and refine the line with a brick. Rub the cut edge of the tile back and forth across a brick or piece of concrete. Rock the tile while doing so to ensure that the edge gets smoothed evenly.
    Cut a Ceramic Tile Step 20.jpg

EditTips

  • If you are new to using these tools, practice on some spare tiles before beginning your project.
  • Always wear proper protection when working with tile, including goggles and gloves.
  • If the tile is glazed, make your mark on the glazed side.[15] If the mark is not showing up, try a permanent marker. You can wipe it off later with rubbing alcohol.
  • Wet saws and tile cutters can get expensive and take up a lot of room. If this is a one-time job, consider renting from your local hardware store instead.[16]

EditThings You'll Need

EditUsing a Glass Cutter for Straight Cuts

  • Ceramic tile
  • Square
  • Pencil
  • Glass cutter
  • Wire hanger or tile nippers
  • Concrete block or brick

EditUsing a Tiling Tool for Straight Cuts

  • Ceramic tile
  • Pencil
  • Tiling tool
  • Concrete block or brick
  • Jig and strip of wood (optional)

EditUsing a Wet Saw for Straight and Corner Cuts

  • Ceramic tile
  • Square
  • Pencil
  • Wet saw
  • Water
  • Concrete block or brick

EditUsing Tile Nippers for Curves

  • Ceramic tile
  • Square
  • Pencil
  • Tile nippers
  • Concrete block or brick
